PWM 30 Amp Solar Charge Controller for the CMPRO range of switchboards.

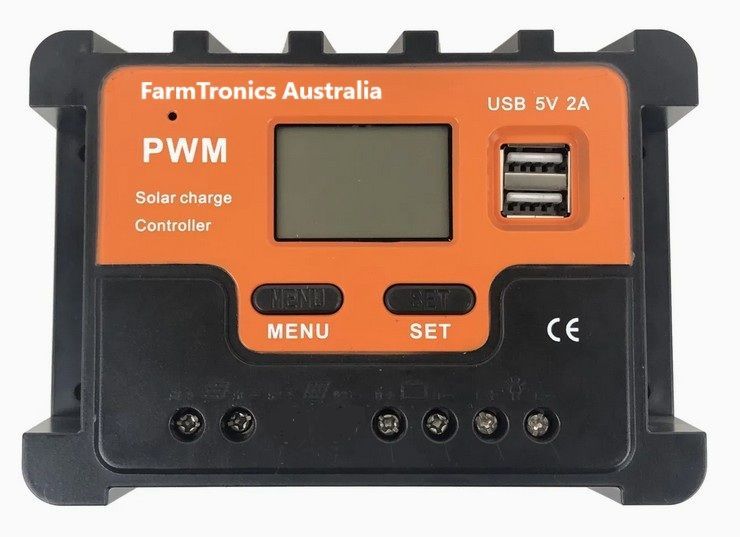

The PWM30A
is a 30 Amp, full function intelligent
3 Stage PWM Solar Charge Controller complete with a Graphics LCD display.
The Solar Charge Controller is capable of charging the following types of batteries:
Lead Acid (Flooded, GEL and AGM) and Lithium Battery ( Li(LiCoMn)O2 and LiFePO4)
All Battery settings are fully programmable for the type of battery chemistry being utilised.
Please Note: The PWM30A software is configured to be used ONLY within our FarmTronics
CMPRO Switchboard range. If you want to use it for any other application please talk to our sales team prior to ordering.
| Model Number |
PWM-30A |
| IP Rating |
IP32 Dustproof |
| Dimensions |
H103mm x W160mm x D38mm |
| Terminal Connection Size |
28AWG(0.30mm²) to 10AWG(2.6 mm²) Wire Size |
| Display Type |
LCD Graphics Multiline Display |
| Solar Panel Input Specification |
12 Volt DC, 390 Watts Maximum |
| Solar Panel Vmp Specification |
Voltage at MAXIMUM POWER (Vmp) = 18 Volts DC (Maximum) |
| Solar Panel Voc Specification |
Voltage at OPEN CIRCUIT (Voc)= 21 Volts DC (Maximum) |
| Solar Charge Controller TYPE |
Pulse Width Modulated with a 3 Stage Charging Function |
| Battery Type Suitability |
Lead Acid (Flooded, GEL & AGM) & Lithium (Li(LiCoMn)O2 & LiFePO4) |
| Battery Type Default Setting |
Lead Acid (Flooded, GEL & AGM) |
| Maximum Current via the Load Output Terminals |
30 Amps |
| Temperature Compensation |
YES Automatically adjusts Charge & Discharge based on Temperature |
| Float Voltage |
13.8 Volts (Default Setting) Setting Range = 13 to 15 Volts |
| Low Voltage Disconnect (LVD) |
10.5 Volts (Default Setting) Setting Range = 9 to 12 Volts |
| Low Voltage Reconnect (LVR) |
12.0 Volts (Default Setting) Setting Range = 11 to 13.5 Volts |
| Battery Overvoltage Protection |
16.5 Volts Non Adjustable |
| Reverse Connection Protection |
YES |
| Load Over Current Protection |
YES |
| USB Ports (2 Off) |
Total Output is 2 Amps at 5.0 Volts DC |
| Working Temperature Range |
-20.0 Celsius to +50.0 Celsius |
| Warranty |
12 Months from date of purchase |
| Support Service |
Phone Support 7 Days a week between 9am to 3pm |
Always refer to your battery manufacturers specifications prior to making any changes to the Solar Charge Controllers settings.
Incorrect settings may damage your Battery and void the warranty.
