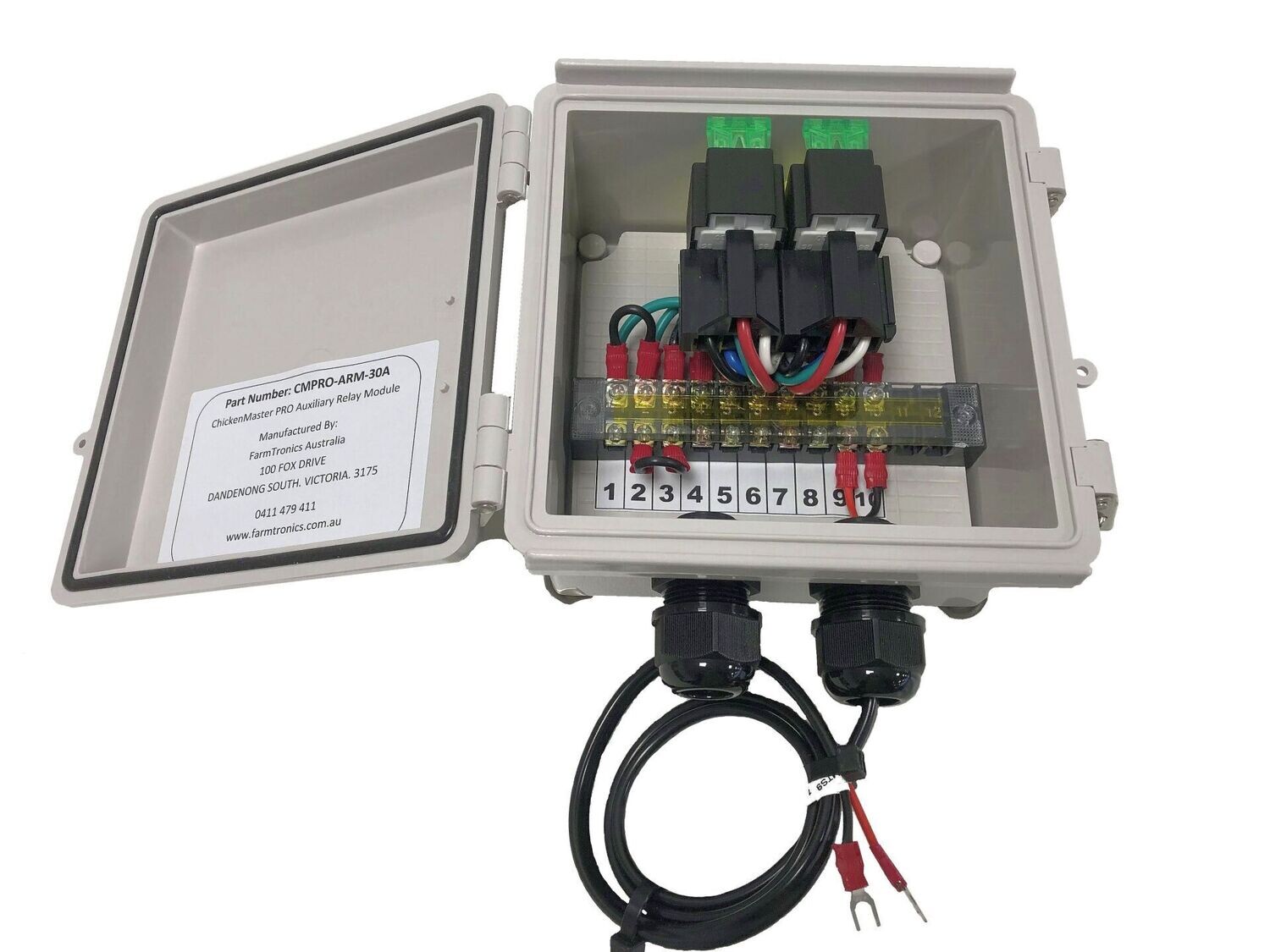

Auxiliary 30 Amp Relay Module

Name: Auxiliary 30 Amp Relay Module
SKU: CMPRO-ARM-30A
Price: 176.0 AUD
Availability: InStock

Store / Control Switchboards

AU$176.00

Price incl. GST (10%) AU$16.00

In stock: 1 available

Product Details

(Legacy Product superseded by the XP 0000 Expansion Module)

The CMPRO-ARM-30A Auxiliary Relay Module adds the ability to increase the switching capacity of your CMPRO-SWB-PWM30A Control Switchboard for the External Doors from 10 Amps to 30 Amps.

Incorporates two, 30 Amp 12 Volt DC Bi-directional Relays which can control up to 12 External Door Actuators.

Maximum load must not exceed 30 Amps. (See Notes at bottom of this page)

Switchboard Enclosure is manufactured from high impact UV Stabilised Polycarbonate and uses
304 Stainless Steel mounting clips and lid clasps.
The enclosure and Cable Wiring Glands have an IP67 Weatherproof rating permitting mounting in the harshest of environments

Download User Manual

Model Number	CMPRO-ARM-30A
Enclosure Type	Poly-carbonate UV Stabilised
Enclosure IP Rating	IP67 Fully Weatherproof
Enclosure Dimensions	H150mm x W150mm x D100mm
Enclosure Mounting Method	External 304 Stainless Steel Mounting Clips
Enclosure Lid Clasps	304 Stainless Steel Lid Clasps
Cable Entry Method	2 Off M20mm IP67 Wiring Glands, Located at bottom of Switchboard
Working Temperature Range	-10.0 Celsius to +50.0 Celsius
Switchboard Voltage Range	12 – 15 Volt DC
External Wiring Connections	Large Gauge 10 Way Screw Terminal Strip
Relay 1, Fuse Rating & Type	30 Amp Automotive Blade Fuse (1 Fuse Supplied)
Relay 2, Fuse Rating & Type	30 Amp Automotive Blade Fuse (1 Fuse Supplied)
Relay 1 & 2 Switching Capacity	30 Amps at 12 Volts DC
Product Compatibility	ChickenMaster PRO model CMPRO-SWB-30A Control Switchboard
Interconnection wiring cable to CMPRO-SWB-PWM30A Control Switchboard	600mm Double Insulated Two Wire pre-crimped wiring loom (Supplied)
External Door Output for Left Side Doors (Terminals 4 & 5)	Bi-Directional 12 Volt DC 30 Amp Relay Output Maximum 6 Actuators
External Door Output for Right Side Doors (Terminals 6 & 7)	Bi-Directional 12 Volt DC 30 Amp Relay Output Maximum 6 Actuators
Warranty	12 Months from date of purchase
Australian Made	Designed & Manufactured in Melbourne, AUSTRALIA.
Support Service	Phone Support 7 Days a week from 9am to 3pm

Notes:

Because of the wide variety of actuators in the market place, you must check the Current Rating on the ones you are intending to use.
More than 12 actuators can be used as long as the current being drawn does not exceed the rated capacity of the 30 Amp Bi-directional relays.

Example 1: Using 16 actuators, each rated at 1.8 Amps = 28.8 Amps, OK to use.

Example 2: Using 10 actuators, each rated at 3.0 Amps = 30 Amps, OK to use.

Example 3: Using 8 actuators, each rated at 5.0 Amps = 40 Amps, NOT OK to use.
